PRESSUREPAK™ Technical Data
|
|
| Flow: |
Maximum 40 GPM (9 CMH) |
| Head: |
Maximum 300 feet/130 PSI (91 M) |
| Fluid Temperature: |
Maximum 95 degrees F (0 degrees C) |
| Ambient Temperature: |
Minimum 32 degrees F (0 degrees C) |
| Operating Pressure: |
Maximum 145 PSI |
| Inlet Pressure: |
Minimum flooded suction, Maximum limited by operating
pressure |
| Operating Setpoint: |
40 to 100 PSI (in 10 PSI increments) |
| Sound Pressure Level: |
External installation < 74 dB(A) at 3 feet
from pump
With enclosure: various depending on enclosure type and insulation |
| Construction: |
Stainless steel pump casing and soldered copper
plumbing |
|
|
|
 PRESSUREPAK™
Sizing Guide |
- Determine approximately how much water
pressure you have available at your water inlet.
- Determine how much water pressure
you require at maximum flow.
- The pressure difference between you
available pressure (1 above) and your required pressure (2 above) is
the PSI Boost Needed for you.

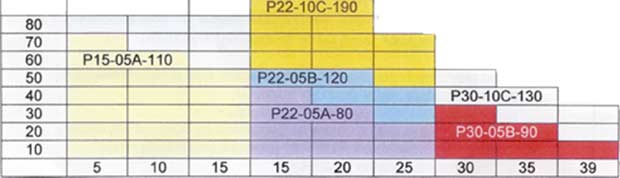

- Select the model from the chart below
that meets the PSI Boost Need for you.
|
PSI Boost Needed
Example: You currently have about 20 PSI at the water inlet and you want 60 PSI with
a maximum flow of 15 GPM. Therefore the amount of boost needed is 40 PSI.
In this case you need model number P15-05A-110. |
|
|
|
Flow required in gallon per minute (GPM)
|
|
|
| System
Configurations |
|
Base Setup includes a 15 GPM variable speed constant
pressure pump capable of producing up to 70 PSI of addtional water pressure,
a variable speed pump controller, a 2 gallon pressure tank and a power
cut-off box, all in a galvanized steel box.
Upgrades are available including dual pump systems that
meet flow standards for residential sprinkler system.
|
|
|
|

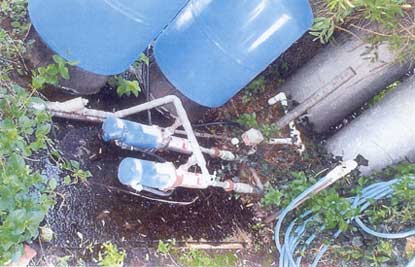

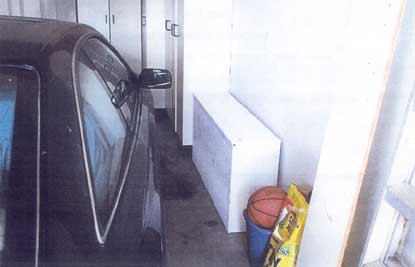

PRESSUREPAK™ replaced all the old equipment with a tidy box tucked away in the garage.
